Duncan Enviro ATD30

Our Enviro ATD30 is the ultimate triple disc, multi-purpose seeder.

Featuring opening Turbo Tilth discs to cut through trash, and followed by large 400mm diameter plain discs, narrow “V” spaced double discs for excellent ground penetration, and accurate seed and fertiliser placement.

The double disc and depth control press wheel assemblies are mounted on parallelogram systems for superb contour following.

Customise this drill for your needs by choosing a row spacing, adding a steering axle, brakes, stabilising wheels, bin cameras and extra hoppers for small seeds and pesticides.

Seed size:
Small to Large
Operation size:
300Ha plus
Key Features

  • Duncan touchscreen electric drive system with GPS speed sensing
  • Optional ISOBUS or ISOCAN system upgrades for integration to tractor control screens
  • Stainless steel Amazone metering units with exchangeable cartridges which are very easy to calibrate, for sowing a variety of small to large seeds, and fertilisers
  • Large 406mm diameter Turbo Tilth blades cut slots into the toughest of ground conditions
  • Large 400mm plain discs mounted in a narrow ”V” penetrate and open up the slots for accurate seed and fertiliser placement
  • Depth control press wheels control the sowing height and close the slot, enhancing seed to soil contact.
  • Bin level sensors in hoppers
  • Large 1300 litre split hoppers
  • 500/60-22.5 wide flotation transport wheels
  • 2 point hitch tow coupling for easy maneuverability

Heat exchanger keeps air flow dry

Opening Turbo Tilth disc, double discs on parallelogram & press wheels

Stainless steel Amazone style metering system in both hoppers

External distributor heads with straight hose runs for good seed flow

Optional rear towbar kit

Optional 3rd & 4th hoppers for small seeds & pesticides

Technology
Air seed distribution

Our air distribution systems consist of a high-speed hydraulically powered fan, which blows air through a venturi system and distributor heads out to the ground engaging components, which are either discs or tines.

Seed and fertiliser is metered out of the storage hoppers and drops into the passing airstream.

The fan has an oil cooling radiator mounted to the suction inlet which warms and dries the air to minimise blockages in humid conditions.

Air distribution is excellent on hills, uneven terrain or smooth worked ground because the seed is always being blown to the ground, rather than relying on gravity, chatter and hose vibration.

The air hoppers are typically larger than the gravity boxes so they are easier to fill, and air seeders can be wider than gravity drills and easily folded up to a transport width.

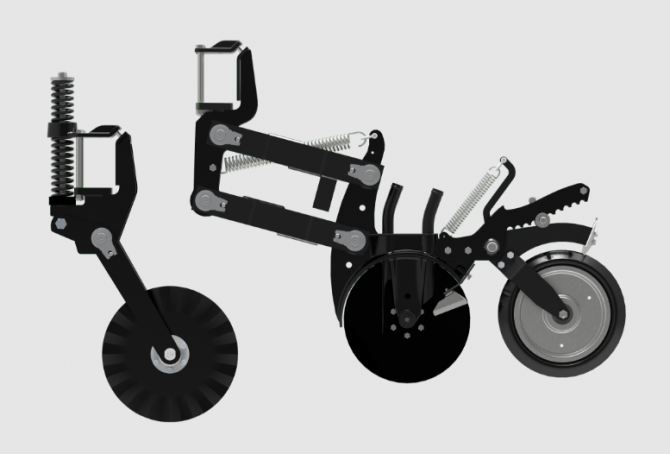

Triple disc technology

Has an independent 400mm diameter fluted opening disc, mounted well forward of each double disc assembly, which allows the drill to break into extremely hard ground and cut trash.

The double disc setup follows directly behind the opening disc, holding the slot open while the seed and fertiliser is placed into the slot.

The sowing depth is accurately controlled by a following press wheel, which also closes the slot. The depth setting is individually set on each press wheel.

A parallelogram system with 400mm of vertical travel gives the individual double disc units superb contour following for constant control of seed and fertiliser depth.

Duncan touchscreen electric drive

All ATD drills have our high torque electric drives and a touchscreen electronic rate control. This advanced system is simple to use and gives the user instant feedback about the operating state of the drill.

Packed with features, including:

* Precision and flexibility to vary planting rates electronically

* Fingertip calibration adjustments

* Includes touch-screen control for turning planting on and off

* Checks drilling rates and areas planted in real time

* High torque electric motor drives and reduction gearboxes

* Visual and audible warnings of drilling rates and bin levels

* Transfer job data between the field and the office using a USB port

Add a GPS aerial for coverage mapping, record keeping and proof of planting.

Enviro ATD30 Specifications

25 Row27 Row
Sowing width (mm) 3100 3100
Overall width (mm) 3100 3100
Overall length (mm) 6100 6100
Height - Working height (mm) 2790 2790
Height - Transport height (mm) 3330 3330
Unladen weight (kg) 6600 6600
Row spacing (mm) 125 115
Hopper capacity (l per side) 1300 1300
Optional Extras

Please select your extras from the options listed below then click ‘REQUEST A QUOTE’.

300L small seeds 3rd box
Slug bait spinner
Mounted crane
Land / stabiliser wheels
Rear tow bar
ISOCAN and ISOBUS controls to integrate with tractor systems

Topcon systems deliver powerful functionality with intuitive interfaces.

Offered as an as alternative to the Duncan touch-screen system, the Topcon solution can be installed in two configurations.



Choose the ISOCAN Artemis system for full electric drive and control, supplied with an independent user interface. Rich in features including:

Color touch-screen display
Auto pre-start function
Variable rate capability
Quick and easy product calibration
Clear, uncluttered display provides intuitive operation
Gets product to the coulters before the drill starts moving
Set application rates and manually adjust as required
Ensures ease of calibration between crop types/varieties and so maximum accuracy
Choose the ISOBUS system to connect directly to your tractor's user interface. This is supplied without an independent touch-screen display.

Will operate on any ISOBUS compliant UT
Permits drill operation with most modern tractors
