The MultiPlus has two options for feeding out, either with the tilting elevator or the optional bale shredder.
The tilting elevator is excellent for feeding out all types of feed onto the ground or into a trough.
The load sensing valve on the cross-floor feed bed ensures a consistent and even amount of product is going out over the elevator.
The optional shredder on the left hand side is brilliant for ripping up those tightly wound round bales and feeding them out in a nice neat windrow on the ground.
Key Features
- Will handle the majority of feed types for operational flexibility
- Can feed out both sides for maximum versatility
- Can feed into troughs with the elevator – great for feed pads and barns
- Slat and chain main floor allows the load to be reversed
- Hardox™ floor in the main bed for excellent wear and strength
- Strenx™ sides for ultimate strength
- Rate control on the cross-floor chain is via a load sensing valve for an easily controlled feed rate
- Gearbox drives on both floors for a smooth

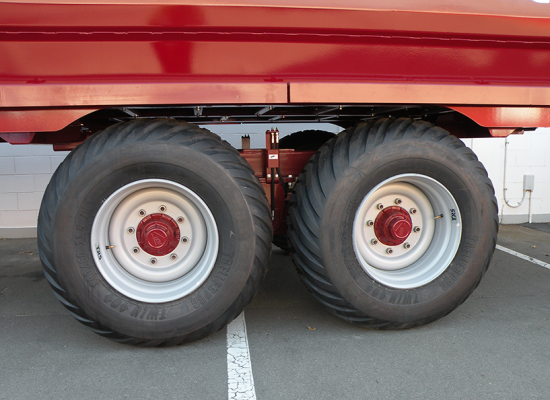

positive drive - Heavy-duty tandem axles with remote greasing points and Vesconite™ bushes have built-in lubricants that translate into low friction and long life, even where no lubrication is applied
- Stainless steel chain tensioners are easy to access and won’t rust
- Full length string rail for tying off bale strings
- Automatic release back gate
- String box with lid to keep your wrap tidy
- Mudguards to help keep the mud on the ground and not on the wagon
- LED lights for use on the road
Hydraulic tilting elevator allows the feed to be fed out into troughs
Combined Hardox450® and Strenx700® tub body for unmatched structural strength and toughness
The main floor and the cross-floor are driven by high torque hydraulically driven gearboxes that are strong and reliable
Twin floor chains running in a recessed floor. The slats will wipe the floor clean as the load moves forward
Stainless steel chain tensioners are easy to access and won’t rust
An automatically releasing back gate prevents damage if the load is reversed. It also swings fully open to load bales from the back
Rope rails run the full length of the body to tie bale twine onto. The twine strips off the bale as the load moves forward
The string box with a hinged lid is ideal for stowing away the wrap, net and string
High-tensile cast sprockets, link chains and cast bush bearings provide a robust feed transfer system
MultiPlus Feeder Specifications
| MultiPlus 13 | MultiPlus 16 | MultiPlus 19 | ||
|---|---|---|---|---|
| 4' round bale capacity (mm) | 4 x 1800 dia. | 5 x 1800 dia. | 6 x 1800 dia. | |
| 4'x3' square bale capacity | 4 to 7' long (single layer) | 6 to 7' long (single layer) | 7 to 7' long (single layer) | |
| Cubic capacity (cu.m) | 13.5 | 16.2 | 18.9 | |
| Weight (kg) | 3810 | 4730 | 5400 | |
| Est. load capacity (kg) | 8700 | 10400 | 12000 | |
| Bin length (mm) | 4165 | 5365 | 6565 | |
| Body length (mm) | 5760 | 6930 | 8160 | |
| Overall length (mm) | 7500 | 8735 | 9930 | |
| Body width (internal) (mm) | 2100 | 2100 | 2100 | |
| Overall width (mm) | 2890 | 2890 | 2890 | |
| Tandem axle (mm) | 70 6 stud unbraked | 80 8 stud unbraked | 90 8 stud unbraked | |
| Wheels | 400/60-15.5 | 400/55-22.5 | 500/60-22.5 | |
| Suspension | Oscillating beam | Oscillating beam | Oscillating beam | |
| Floor height (mm) | 1200 | 1300 | 1495 | |
| Overall height (mm) | 2300 | 2400 | 2615 | |
| Main bin floor | 4 chains/slat moving floor | 4 chains/slat moving floor | 4 chains/slat moving floor |
MultiPlus At Work
